Cassetted Blinds
Manual & Motorised
Tailored to Every
Space & Style

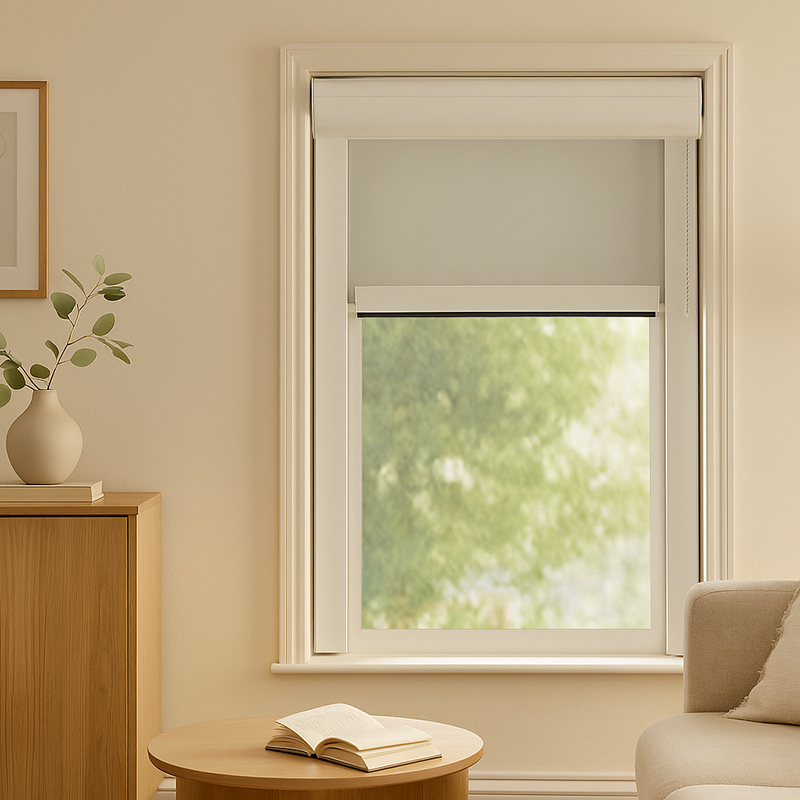

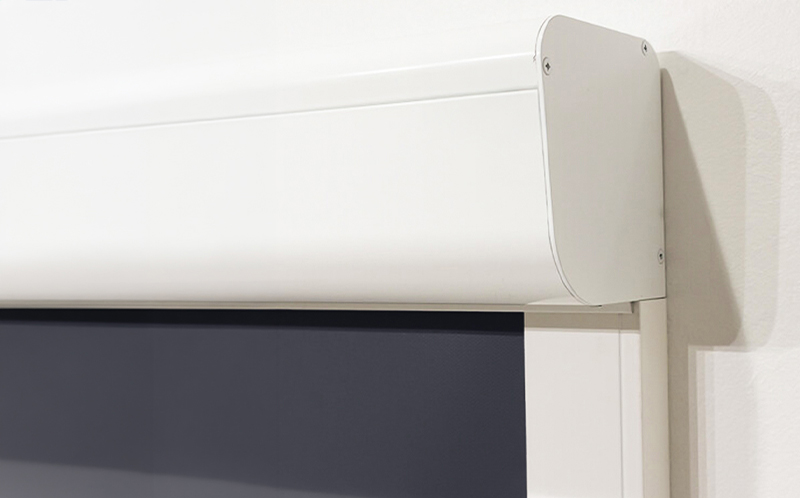

Our cassetted roller blinds are available in crisp white or sleek black hardware, with two cassette sizes to suit both recess and face-fix installations.
Designed for a neat, seamless finish, they’re a practical choice for projects where reliable blackout performance and a clean look are essential.
Motorisation OptionsExplore Fabrics
Everything You
Need to Know
Control Options
Offer modern control for Cassetted Blinds - from remotes to full smart automation. With Dream, and Somfy, you can match every budget and level of integration. Only compatible with medium cassette.

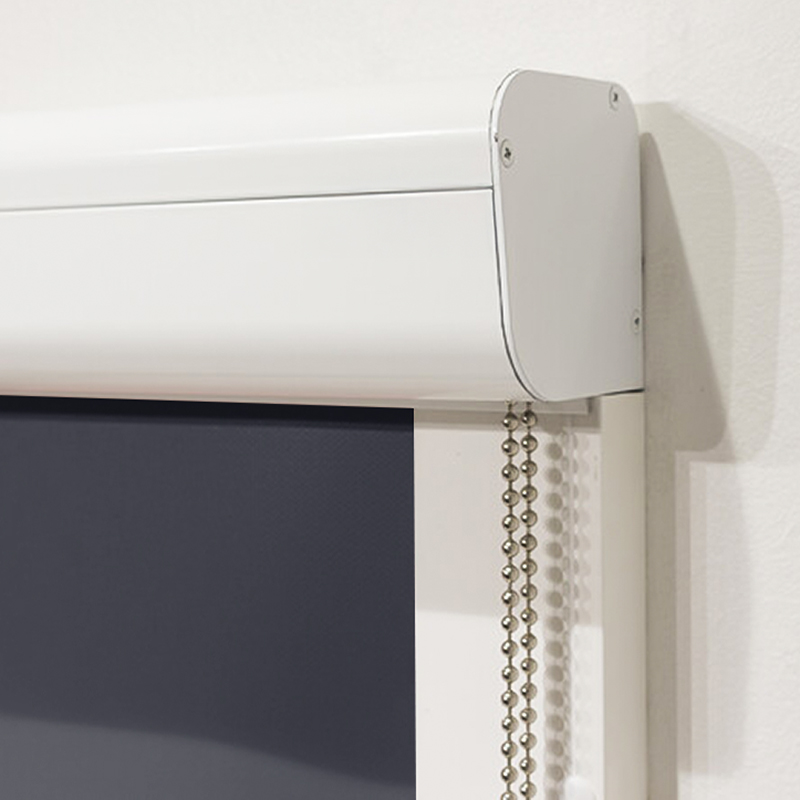

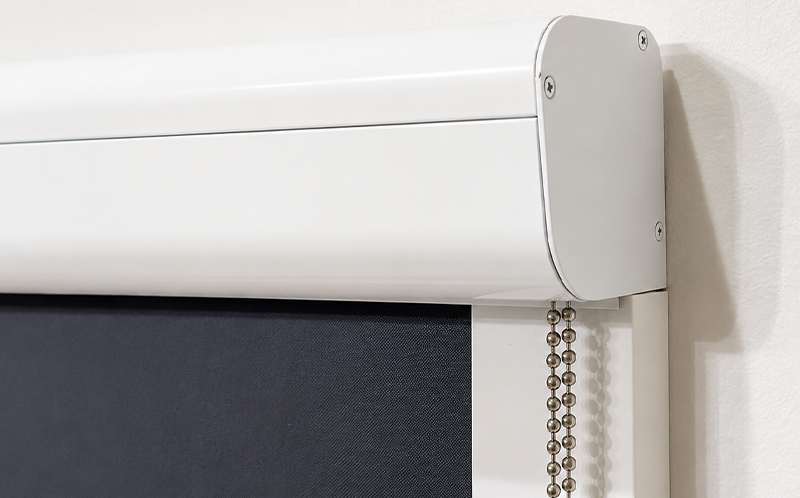

Wide range of chains to choose from. Durable nickel-plated metal chain supplied as standard. A P-clip safety device is included, with additional safety options available.

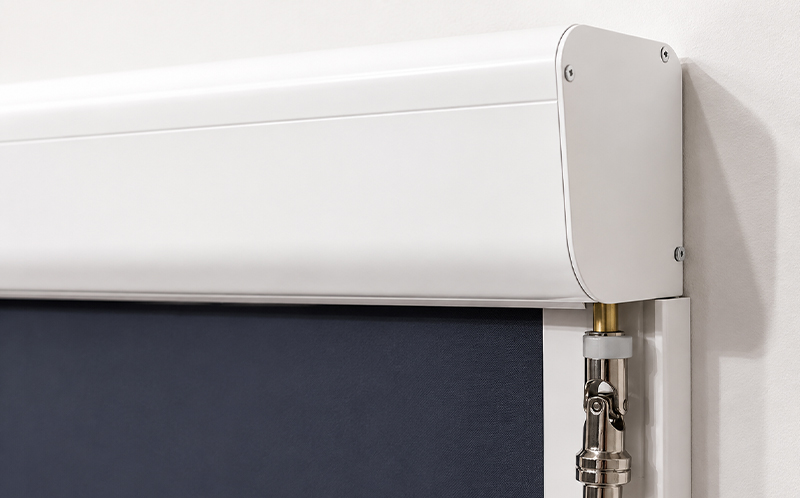

Available in two options: with a hook attachment or magnetic, heavy-duty version. Crank handles are available for both.
White Plastic
Nickel Plated Mild Steel.
Supplied as standard
Antimicrobial Copper Silver
Antimicrobial Copper Gold
Grey Nickel
Nickel Plated Stainless Steel
Black Nickel
Brass
Antique Brass
Copper
Hardware Colours

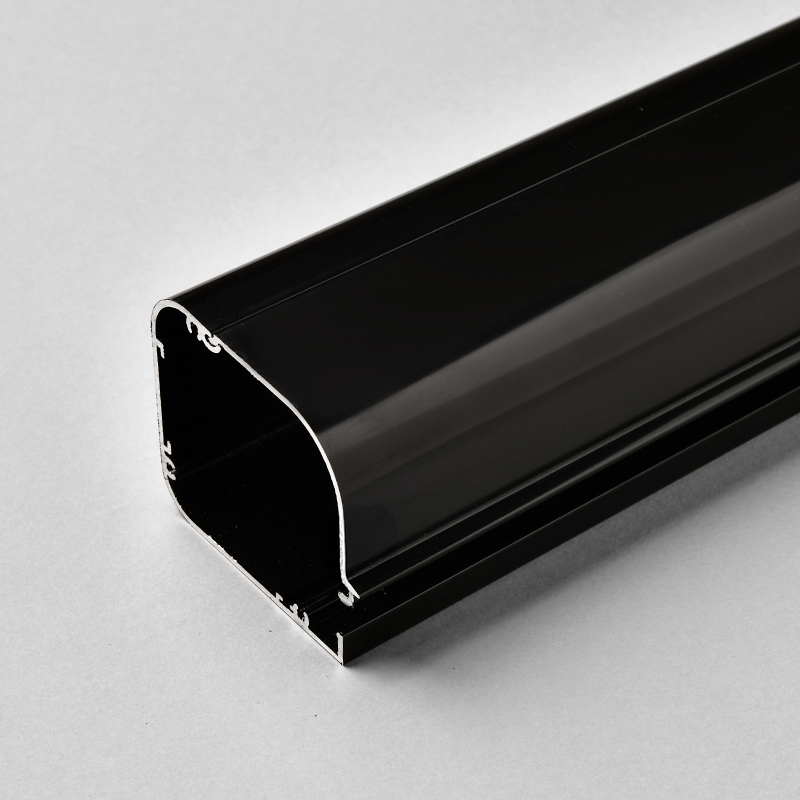

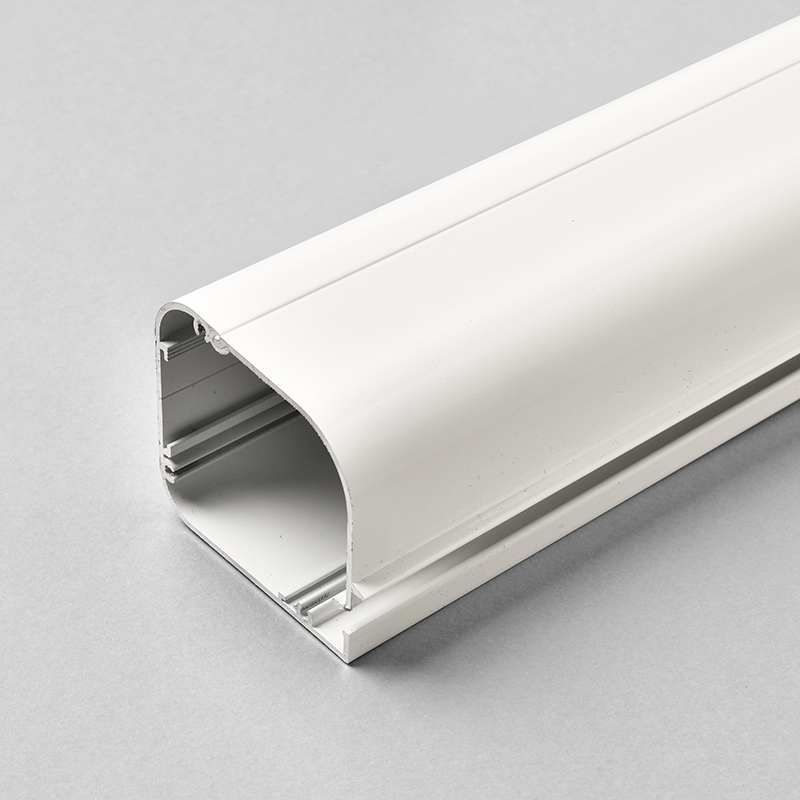

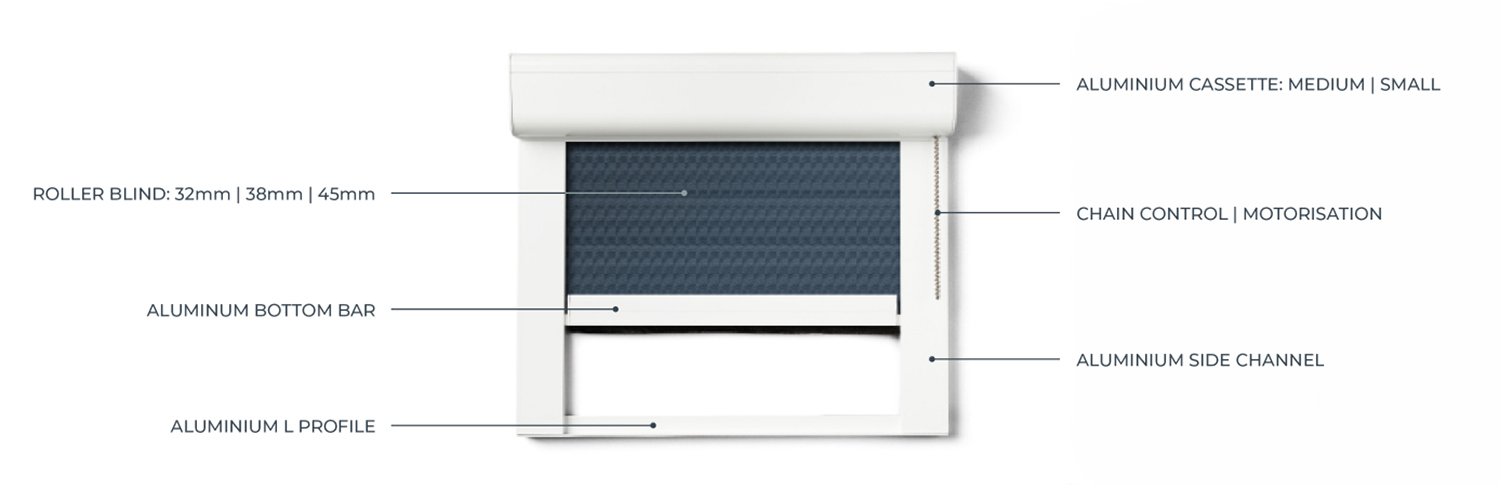

All hardware components - cassette, bottom bar, side channels, and end caps - are available in matching white or black finishes. The cassettes are available in two sizes: medium and small. See the technical specification section for
dimensions.
White
Black
Fabrics
Blackout
Screen
Reflective Screen
Reflective Dimout
Light Filtering
Sheer
Alongside our signature Capital Collection, we offer fabrics from leading textile suppliers, giving you the flexibility to deliver the right solution for every project.
Technical Specifications
| Product | Min Width | Max Width | Max Drop |
|---|---|---|---|
| Chain Operated Cassetted Blind | 300mm | 2400mm | 2700mm |
| Crank Operated Cassetted Blind | 300mm | 2100mm | 2100mm |
| Motorised Cassetted Blind - 38 Battery Motor | 545mm | 2250mm | 2250mm |
| Motorised Cassetted Blind - 38 Mains Motor | 550mm | 2250mm | 2250mm |
| Motorised Cassetted Blind - 45 Battery Motor | 755mm | 2400mm | 2800mm |
| Motorised Cassetted Blind - 45 Wired Motor | 575mm | 2400mm | 2800mm |
| Motorised Cassetted Blind - 45 Mains RJ12 Motor | 645mm | 2400mm | 2800mm |
Recess Installation
1. Measure the width of the recess at the top, middle, and bottom. Use the smallest measurement.
2. Measure the height of the recess from the top to the windowsill in three places. Use the smallest measurement.
Outside Recess Installation
1. Measure the width of the area you want the blind to cover, adding at least 50mm on each side.
2. Measure the height from where the blind will be mounted to the desired length, adding at least 50mm below the windowsill for proper coverage.

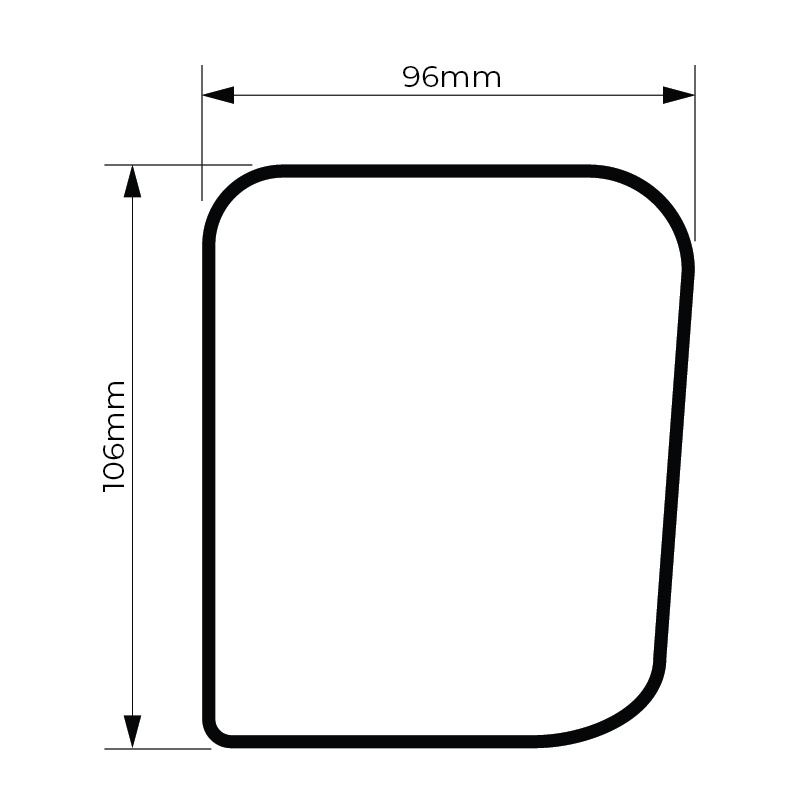

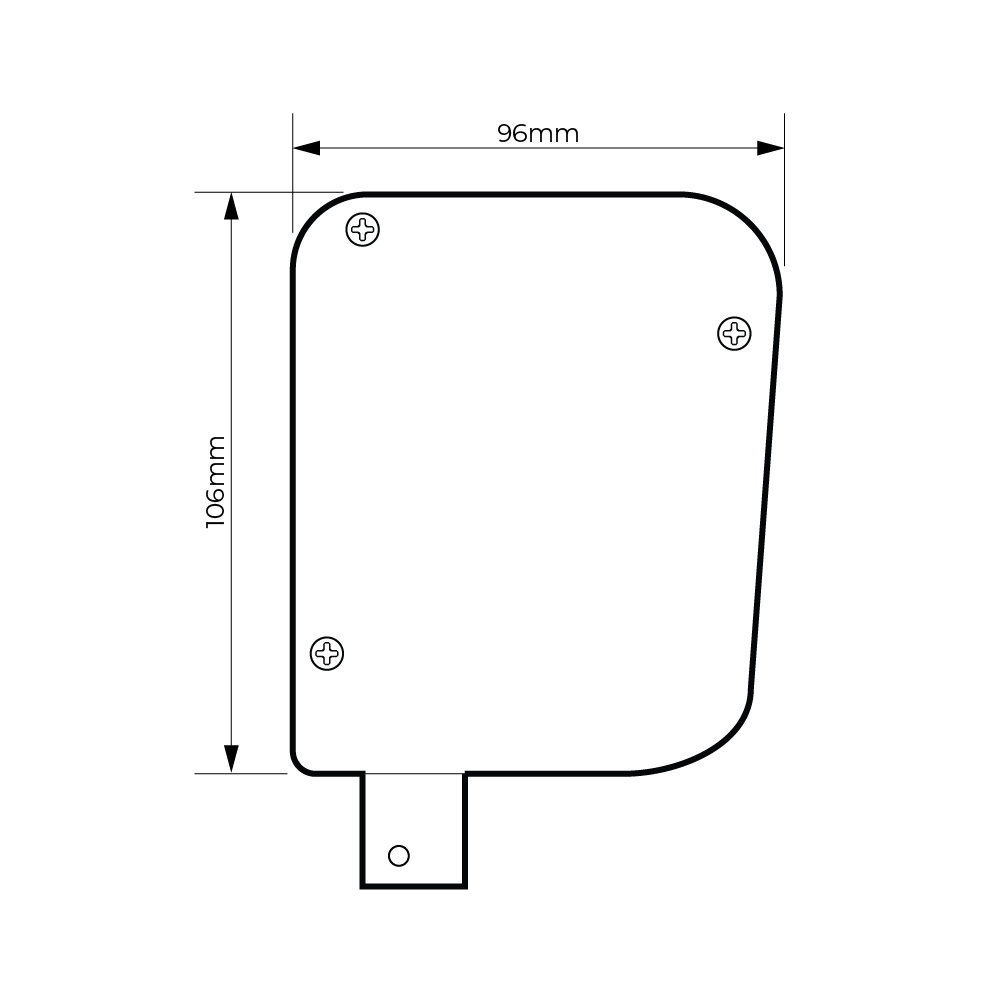

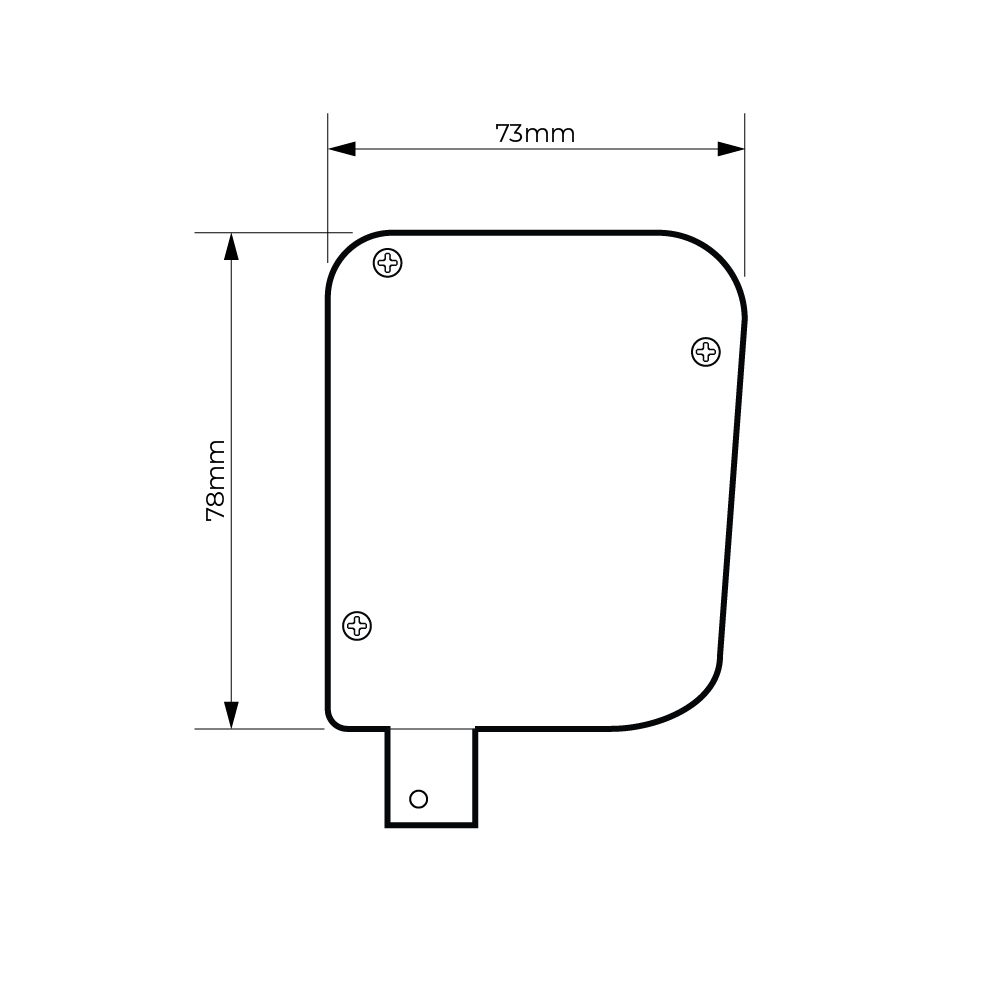

Medium Cassette

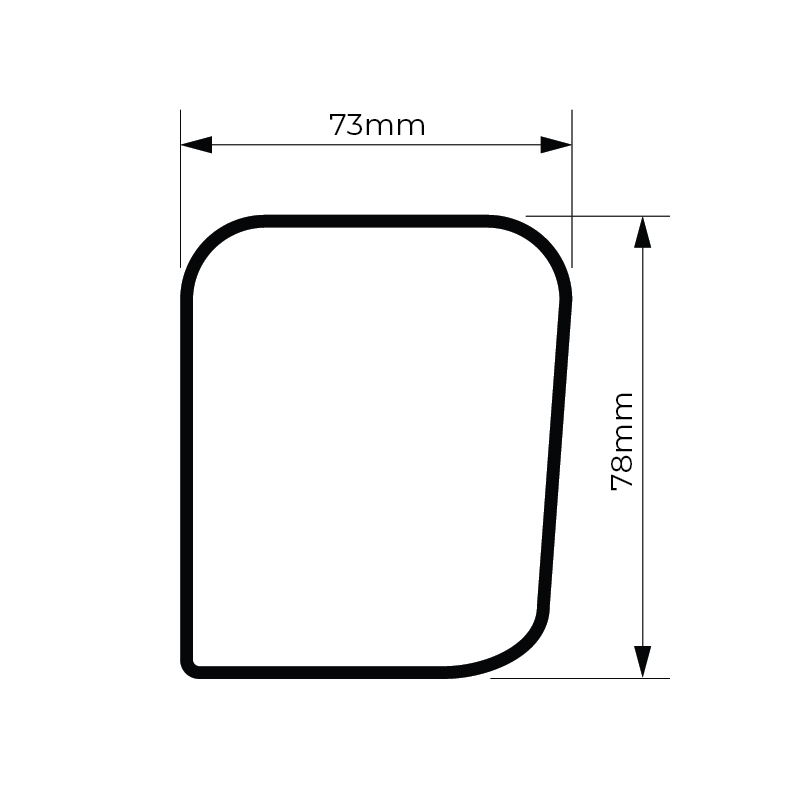

Small Cassette

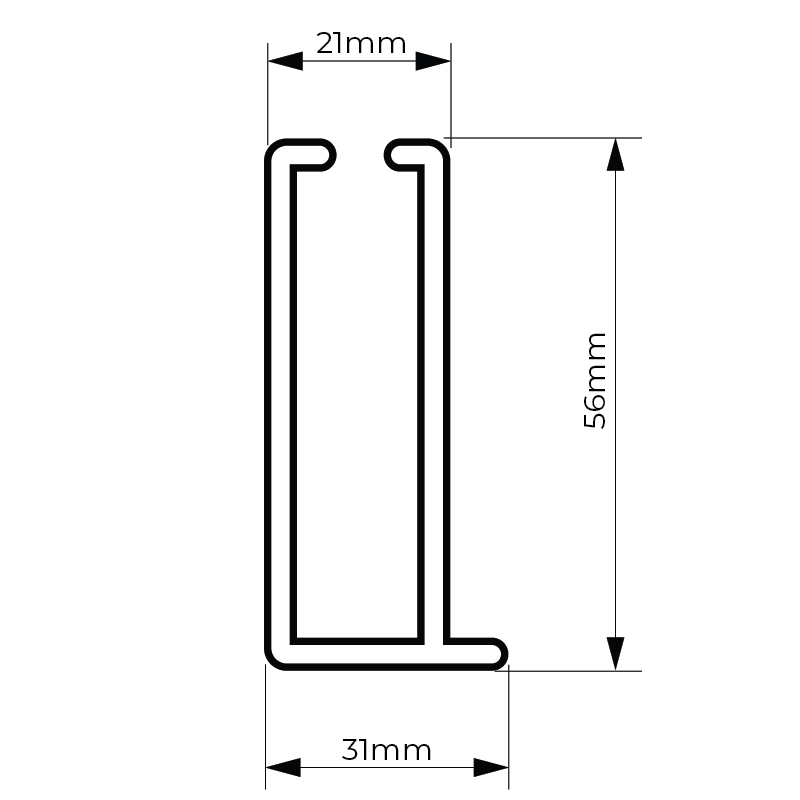

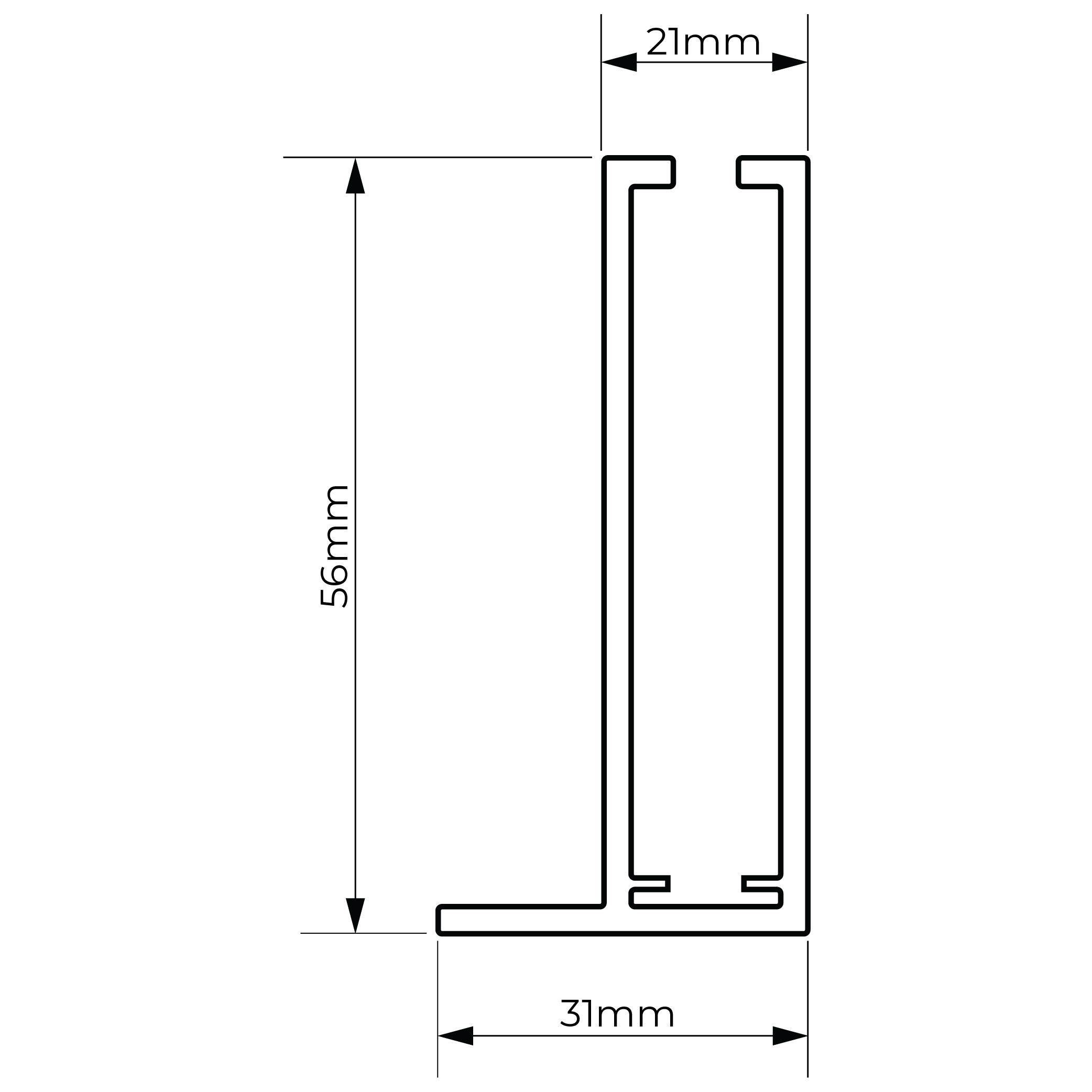

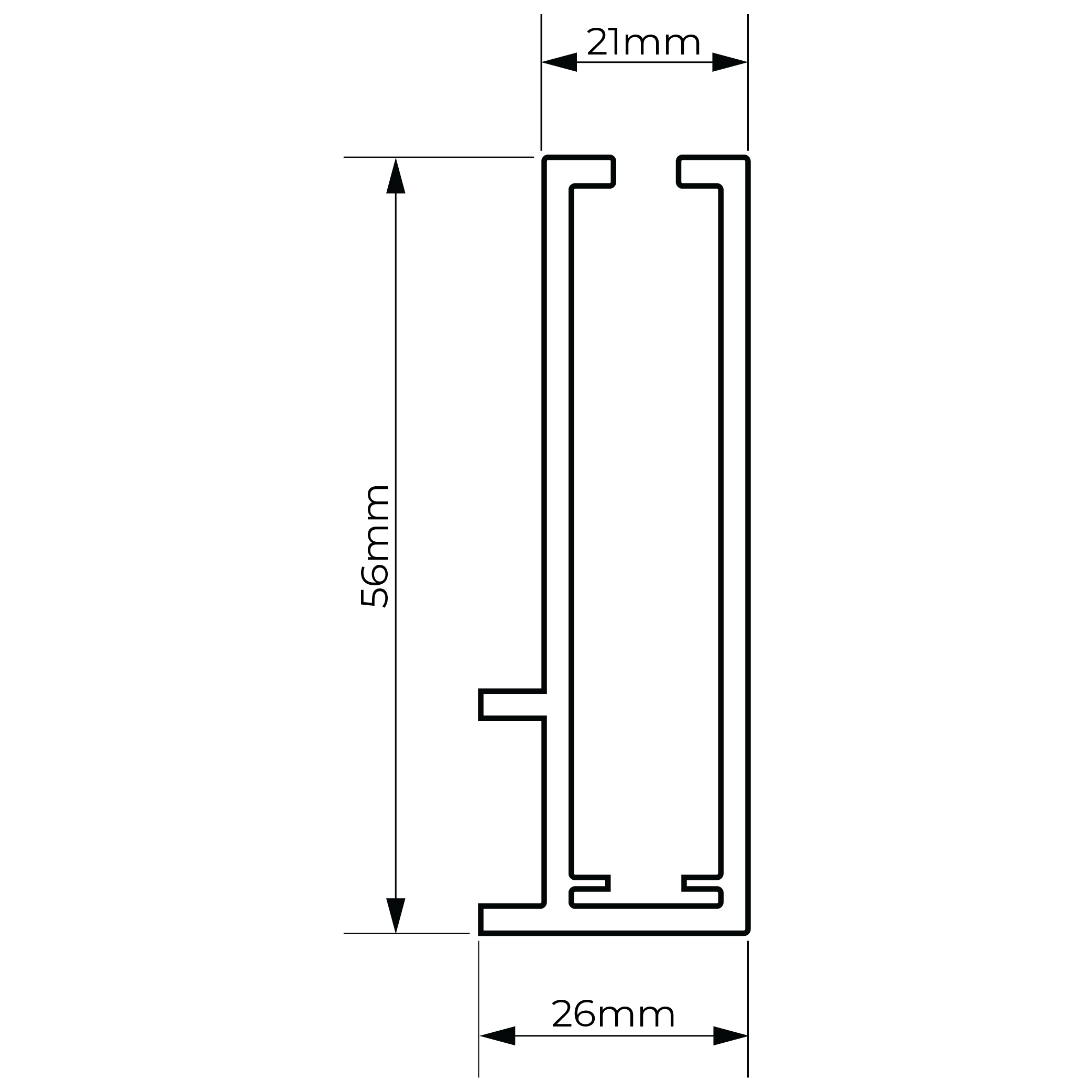

Recess-fix Side Channel

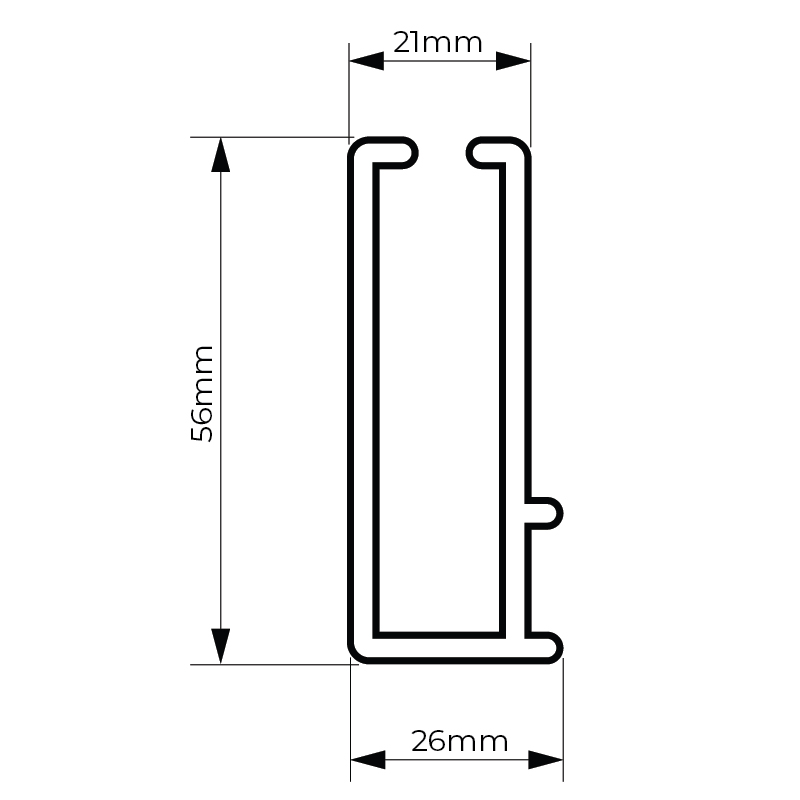

Face-fix Side Channel

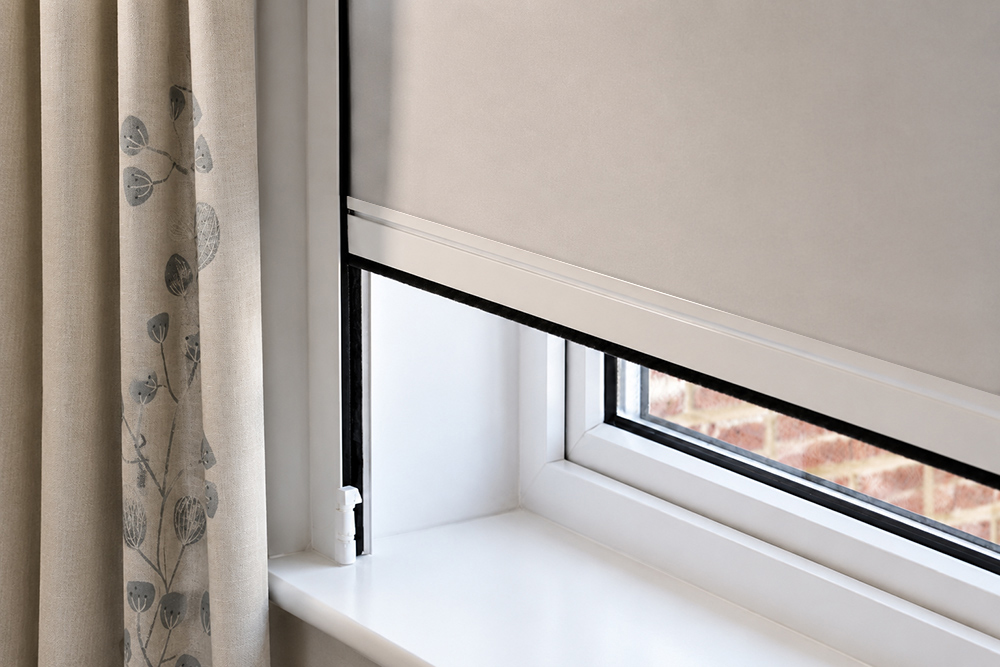

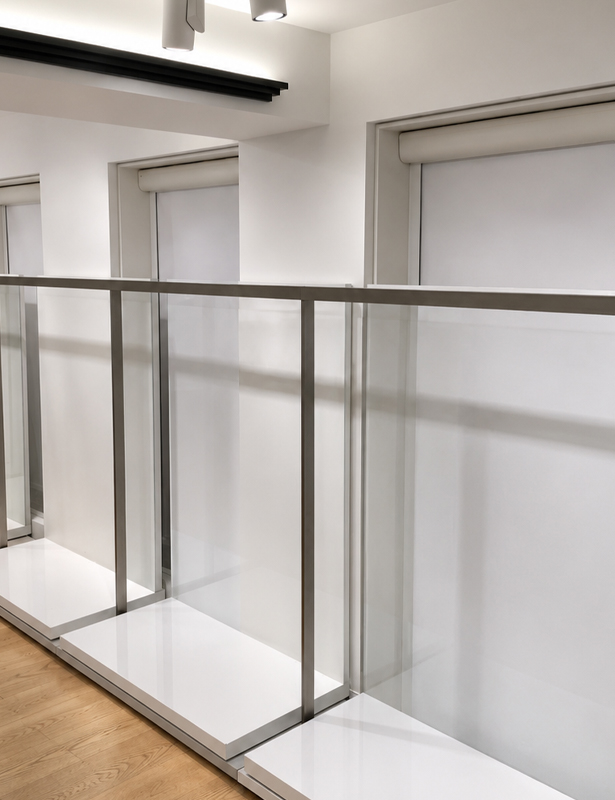

Explore
the Finished Look
