With Decorquip Blinds & Curtains
Tailored to Every
Space & Style
Discover an exceptional range of motors and accessories from Somfy - expertly engineered to integrate seamlessly with Decorquip blinds and curtain tracks. For detailed product information, visit somfy.co.uk.
Explore MotorsExplore Controls
Product details
Everything You
Need to Know

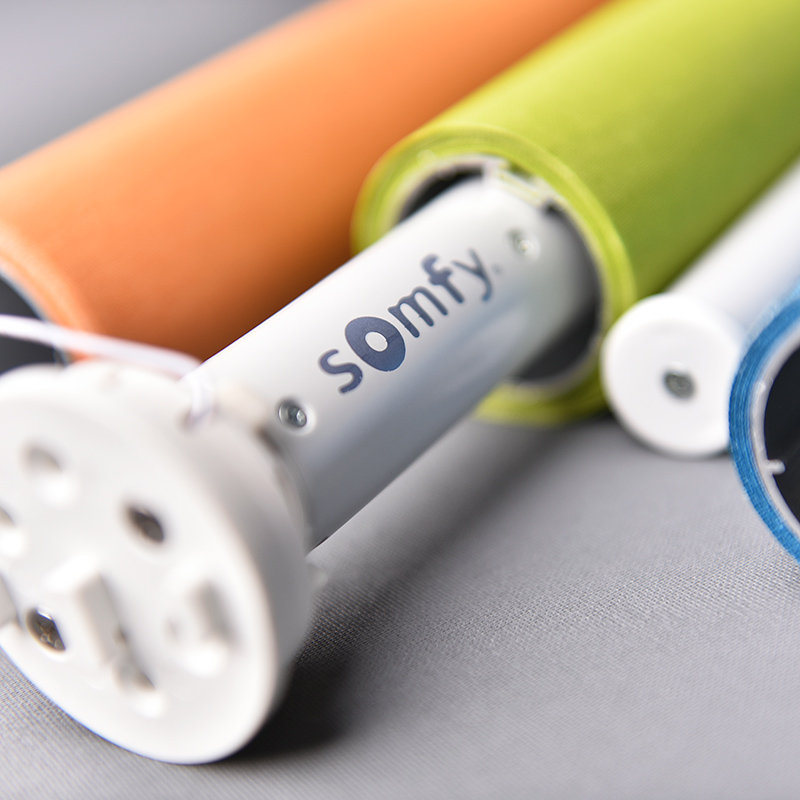

Somfy Motors
For comprehensive motor specifications, please visit the Somfy website.
32mm Roller Motor
| Motor model | Min. width | Power |
|---|---|---|
| ROLL UP 24 WF RTS Li-ion | 530mm | BATTERY |

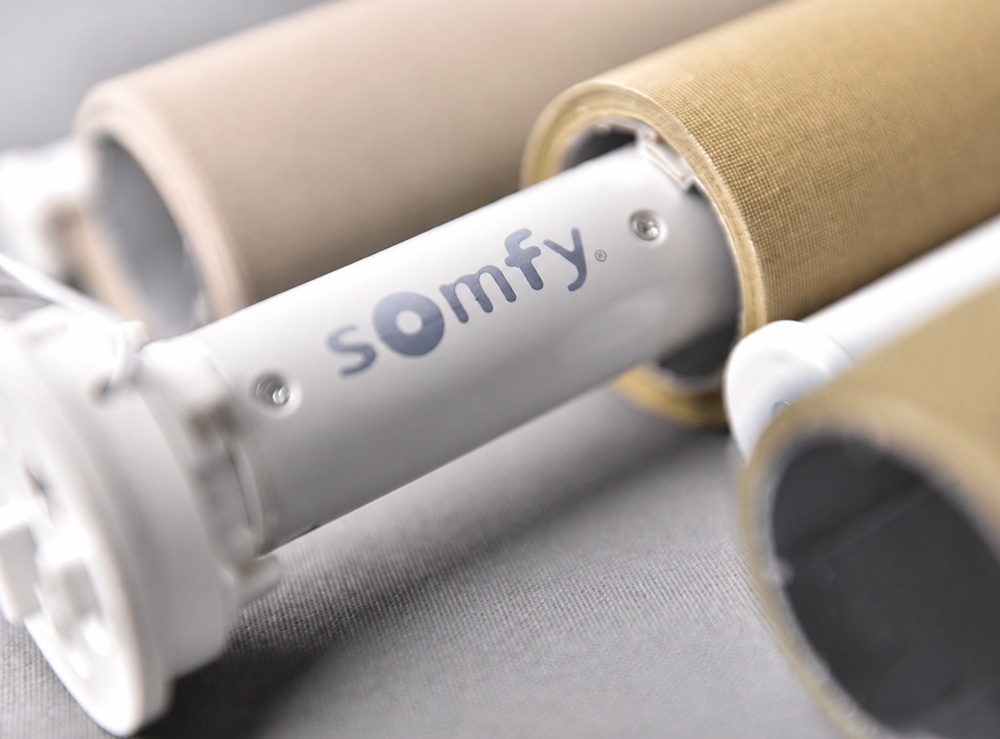

38mm Roller Motors
| Motor model | Min. width | Power |
|---|---|---|
| SONESSE 40 3/30 RTS | 580mm | MAINS |
| SONESSE 40 3/30 Zigbee | 580mm | MAINS |
| SONESSE 40 6/20 RTS | 611mm | MAINS |
| SONESSE 40 3/30 WT | 538mm | WIRED |
| SONESSE 40 6/20 RTS | 570mm | WIRED |
| SONESSE 40 WF RTS | 710mm | BATTERY |
| SONESSE 40 6/20 RS485 | 605mm | - |
Roman Motors | Headrail Only
| Motor model | Min. width | Max. width | Power |
|---|---|---|---|
| TILT & LIFT 25 WF RTS | 365mm | 3000mm | BATTERY* |
| TILT & LIFT 25 Zigbee | 365mm | 3000mm | BATTERY* |
* Supplied with an external rechargeable Li-ion Battery.
XL Roman Motors | Headrail Only
| Motor model | Min. width | Max. width | Power |
|---|---|---|---|
| SONESSE 40 3/30 RTS | 580mm | 3550mm | MAINS |
| SONESSE 40 3/30 Zigbee | 580mm | 3550mm | MAINS |
| SONESSE 40 6/20 RTS | 611mm | 3550mm | MAINS |
| SONESSE 40 3/30 WT | 538mm | 3550mm | WIRED |
| SONESSE 40 6/20 WT | 570mm | 3350mm | WIRED |
| SONESSE 40 6/20 RS485 | 570mm | 3350mm | WIRED |
| SONESSE 40 WF RTS | 710mm | 3350mm | BATTERY |
Curtain Track Motors
| Motor model | Max. width | Max. load |
|---|---|---|
| GLYDEA ULTRA 60 RTS | 10000mm | 60kg |
| GLYDEA ULTRA 60e WT | 10000mm | 60kg |
| MOVELITE 35 RTS | 10000mm | 35kg |
| MOVELITE 35 WF RTS | 10000mm | 35kg |
| MOVELITE 35 WT | 10000mm | 35kg |
Pleated Motors
| Motor model | Min. width | Max. width | Power |
|---|---|---|---|
| TILT & LIFT 25 WF RTS | 360mm | 2400mm | BATTERY* |
| TILT & LIFT 25 Zigbee | 360mm | 2400mm | BATTERY* |
* Supplied with an external rechargeable Li-ion Battery. The minimum width for Tensioned Blinds is 520mm for drops up to 2m, and 685mm for drops over 2m.

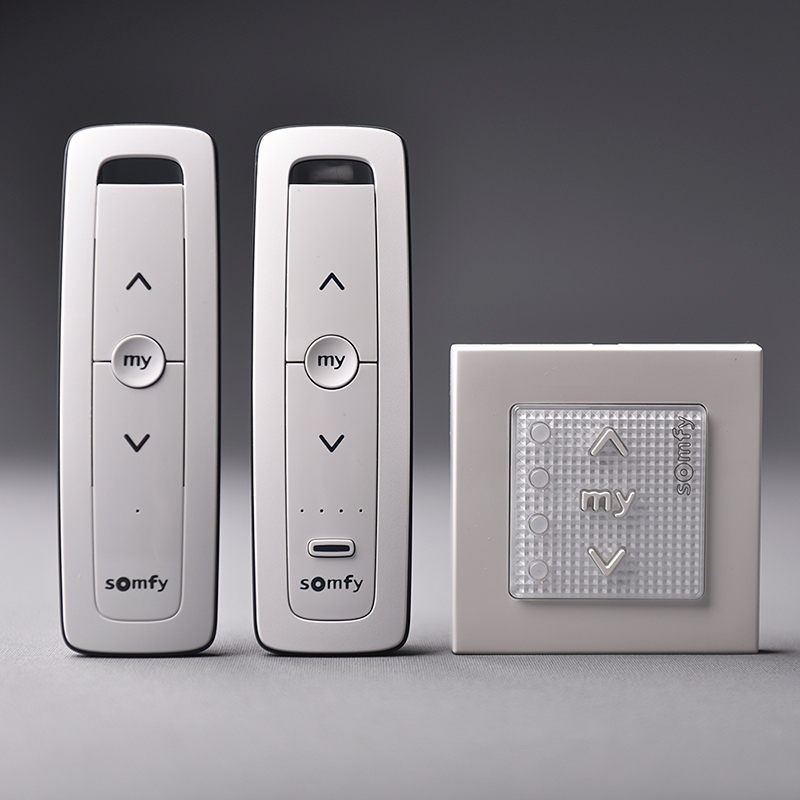

Somfy Controls
For comprehensive controls specifications, please visit the Somfy website.
Remotes
| Product |
|---|
| SITUO 1 RTS PURE II |
| SITUO 5 RTS PURE II |
| TELIS 16 RTS PURE |
| SMOOVE ORIGIN 1 RTS - WHITE FRAME |
| SMOOVE ORIGIN 4 RTS _ WHITE FRAME |
Accessories
| Product |
|---|
| SOMFY External Li-ion Battery |
| SOMFY WF Li-ion SOLAR PANEL |
| SOMFY 12V AC/DC Power Adaptor |
| SOMFY Li-ion CHARGER PLUG |
| SOMFY TAHOMA - SMART HOME HUB |
Technical Specifications
Crown and Drive Guide
| Motor | 32mm Roller | 38mm Roller | 45mm Roller | 55mm Roller | XL Roman |
|---|---|---|---|---|---|
| Roll Up 24 | Crown & Drive: 9025710 | Crown & Drive: 950138 | - | - | - |
| Roll Up 28, Sonesse 28 | - | Crown & Drive: 950122 | - | - | - |
| Sonesse 30, Ultra 30 | - | Crown & Drive: 950122 | Crown & Drive: 950120 | - | Crown & Drive: 950168 |
| Sonesse 40 | - | - | Crown & Drive: 950100 | Crown & Drive: 950164 | Crown & Drive: 950130 |
Bracket Adaptor Guide
| Bracket Adaptor | Code | Motor Compatibility |
|---|---|---|
| Roller 32mm & 38mm Bracket Adaptor - White | 191595 | Roll Up 24 & 28, Sonesse 28 & 30, Ultra 30 |
| Roller 32mm & 38mm Bracket Adaptor - Black | 191604 | Roll Up 24 & 28, Sonesse 28 & 30, Ultra 30 |
| Roller 45mm & 55mm Bracket Adaptor - White | 191594 | Sonesse 40 |
| Roller 45mm & 55mm Bracket Adaptor - Black | 191603 | Sonesse 40 |
| XL Roman Bracket Adaptor - White | 950134 | Sonesse 30 & 40, Ultra 40 |
